Arc Full User Guide

Arc Alarm Clock
User Guide

CLOCK FUNCTIONS

Front View: (A) Digital Display (B) Alarm Knob

Top View: (C) Clock Time Knob (D) Brightness Knob (E) Snooze and Light Bar

HOW-TO VIDEO

TURN ON ARC

1. Plug in Arc Alarm Clock

Plug in Arc Alarm Clock. Please only use the provided plug adapter.

Once plugged in, the clock hands will auto-calibrate to midnight. Arc is ready to use when you see the deactivated alarm bell icon on the Digital Display (A).

Digital Display shows crossed out bell icon

CLOCK SET UP

1. Set Time Format

Arc is automatically set to a 12-hour format. To switch to a 24-hour format, press and hold the back Clock Time Knob (C). The Digital Display (A) will show "24 H," confirming the change.

Clock Time knob is the back knob closest to the USB-C cable

2. Set Current Time

Press the Clock Knob (C). A clock icon and then the set time will appear. Turn the Clock Knob left or right to select your current time, then press it again to confirm. The analog clock hands will adjust to match your setting.

Clock Time knob is the back knob closest to the USB-C cable

ALARM SET UP

1. Activate or Deactivate Alarm

With the bell icon visible on the Digital Display (A), press and hold the Alarm Knob (B) to activate or deactivate the alarm. When the alarm is active, it will chime at the set alarm time every day. When the alarm is inactive, it will never chime.

Alarm knob is the large knob on the front of the clock

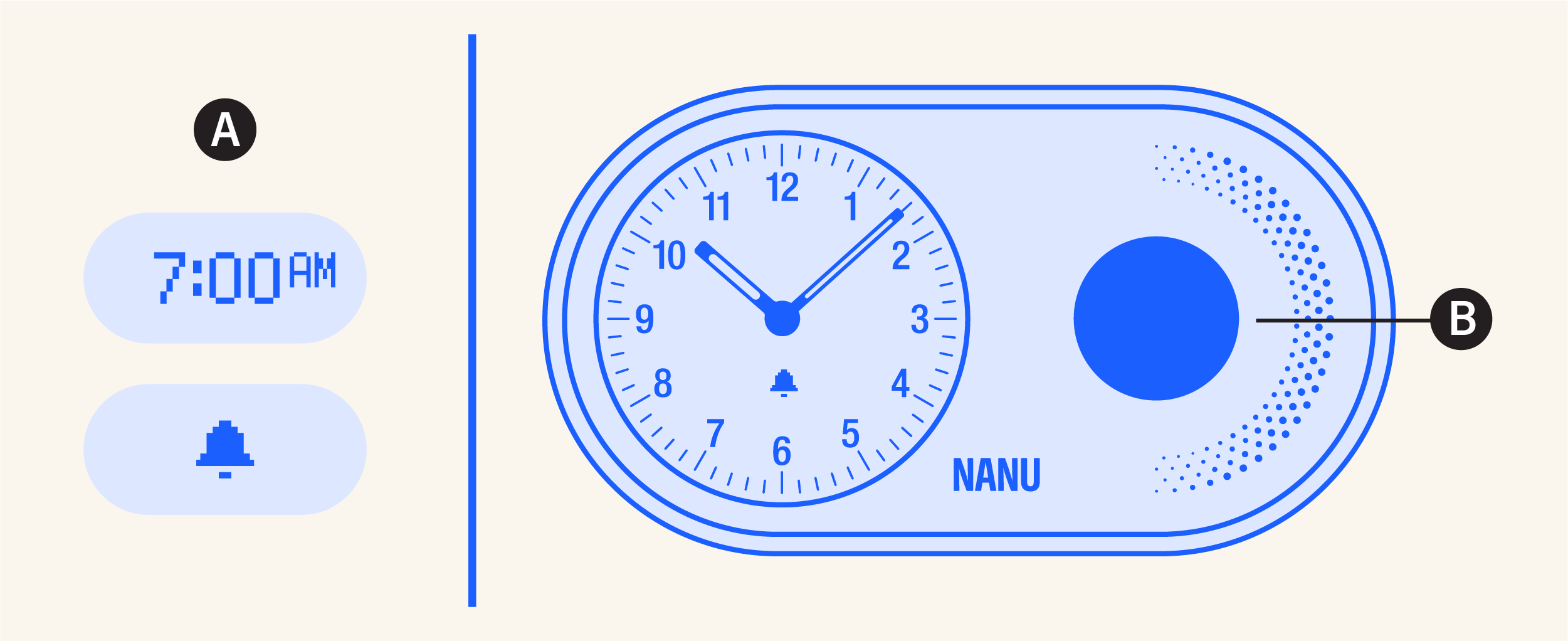

2. Set Alarm Time

With the bell icon visible on the Digital Display (A), short press the Alarm Knob (B) to view the set alarm time. If you wish to change the alarm time, rotate the Alarm Knob left or right to reach your preferred time, then short press the Alarm Knob to confirm your selection and exit the setting.

If you don’t wish to change the alarm time, allow the display to time out after 10 seconds. The set time will then revert to the previous set alarm time.

Alarm knob is the large knob on the front of the clock

3. Stop Alarm

Press the Alarm Knob (B) to stop the chime when it is playing. After the chime is stopped, the alarm will repeat daily unless reset or deactivated. A long press on the Alarm Knob when Arc is chiming will stop the chime and deactivate the alarm at the same time.

Alarm knob is the large knob on the front of the clock

4. Snooze Alarm

To snooze, press the top Snooze Bar (E) to pause the alarm for 10 minutes. The Digital Display (A) will show a snooze icon. You can snooze as many times as needed. When you’re ready to get up, press the Alarm Knob (B) to cancel snooze and stop the alarm.

Snooze bar is the button on the top of the clock

BEFORE USE: CHIME INFORMATION

Quiet Chime: If your Arc arrives cold from shipping, let it warm to room temperature (above 54°F/12°C) for 2 hours before use.

Cold temperatures thicken the chime's lubricated components, affecting sound quality. Once at room temperature, if you would like to tune your alarm louder or softer, please head here for chime calibration instructions.

About The Chime Melody: The Arc Alarm Clock's melody is thoughtfully designed to ease you into wakefulness. It flows through three distinct phases:

Phase 1 (0–14 seconds): Starts at the softest volume, to nudge you awake without startling.

Phase 2 (15–45 seconds): Gradually increases sound to medium volumes, with a mix of slightly louder tones, offering a gentle progression.

Phase 3 (46 seconds onward): Brings in the loudest volume more frequently, to ensure even deep sleepers are awakened. This phase lasts for 3 minutes before the alarm automatically snoozes if not turned off.

DISPLAY AND NIGHT LIGHT

1. Display Brightness

Press the back Brightness Knob (D), turn to adjust brightness of the Digital Display (B) and night light. Press again to set.

2. Night Light

Press the Snooze & Light Bar (E) to illuminate the clock face. It will stay lit for 10 seconds, or press the bar again to turn it off sooner.

3. Turn OFF Digital Display

For total darkness, press and hold the Snooze & Light Bar (E). When the display is off, interact with any button on Arc to turn on the digital display.

POWER

1. No Power

Arc should always be left plugged in. If Arc is unplugged or there is a power loss, the Digital Display (A) will flash a "No Power" icon every 10 seconds. Arc has a rechargeable backup battery which is able to provide 16 hours of backup power.

2. Turn off Arc Alarm Clock

Unplug Arc. When Arc is unplugged the back-up battery will be enabled. To fully turn off the device, simultaneously press and hold the Clock Time Knob (C) and Brightness Knob (D) for 10 seconds.

Troubleshooting: If Arc isn’t responding or seems frozen, you may need to reset it. Click here for step-by-step instructions.
